Injection using Fischbach Cartridge tubes
Plastic adapters to fit Fischbach 400cc and 1000cc cartridge tubes - they screw on to the standard threads.
The adapters can be supplied with extended nozzle tubes in 8mm, 10mm and 16mm outer diameter, in any length.
The adapters can also be fitted to carry Needles from 1mm to 5mm outer diameter.
We also supply Professional quality skeleton guns to fit the cartridge tubes and Metal Needles.
For help with these products call 01626 872886.
Cartridge tubes - click here
Extension adapters - 400cc - click here
Extension adapters - 1000cc - click here
Needle adapters - click here
Skeleton Guns - 400cc - click here - 1000cc - click here
Click here to see the size ranges and prices in our Resins Shop
Fischbach Cartridge Tubes
Volumes - 400cc and 1000cc
Sizes - 50mm outer diameter x 270mm overall length (400cc) and 90mm outer diameter x 220mm overall length
400cc - shown with standard nozzle and piston

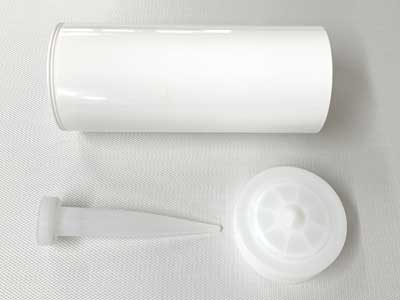

1000cc - shown with standard nozzle and piston
For help with these products call 01626 872886.
Click here to see the size ranges and prices in our Resins Shop
Click to go to the top of this page
Adapters to fit Fischbach Cartridges
For 400cc Cartridge Tubes
Needle adapter
Adapter and a selection of needles, 1mm up to 5mm in diameter
Extension tubing
Adapters fitted with 16mm, 10mm and 8mm diameter extension tubes
Extension length can be chosen to suit the application.
For 1000cc Cartridge Tubes
Extension tubing
Adapters fitted with 16mm, 10mm and 8mm diameter extension tubes
Extension length can be chosen to suit the application.
For help with these products call 01626 872886.
Click here to see the size ranges and prices in our Resins Shop
Click to go to the top of this page

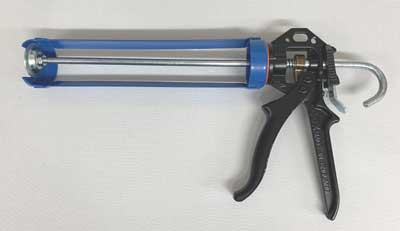

Skeleton Guns for Fischbach Cartridge Tubes - professional quality
Skeleton Gun for up to 400cc cartridge tubes
Skeleton Gun for up to 1000cc cartridge tubes
For help with these products call 01626 872886.
Click here to see the size ranges and prices in our Resins Shop
Click to go to the top of this page
Suggested products for Injection using Fischbach Cartridge tubes and extensions
1. Anchoring bars in holes - Thixotropic Epoxy Injection Resin - Slow Set version - 400cc or 1000cc cartridge tube fitted with an extension nozzle adapter and tubing to suit
2. Injecting voids in timber or masonry - Thixotropic Epoxy Injection Resin - Slow Set version - 400cc or 1000cc cartridge tube fitted with an extension nozzle adapter and tubing to suit
3. Injecting fine cracks in masonry - bricks, stones, render - Thixotropic Epoxy Injection Resin - Slow Set version - 400cc or 1000cc cartridge tube fitted with a needle nozzle adapter and needle
For help with these products call 01626 872886.
Click here to see the size ranges and prices in our Resins Shop
Click to go to the top of this page
